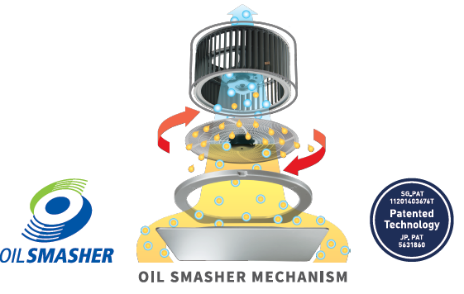

Patented OIL SMASHER High-speed Spinning Disc keeps oil out.

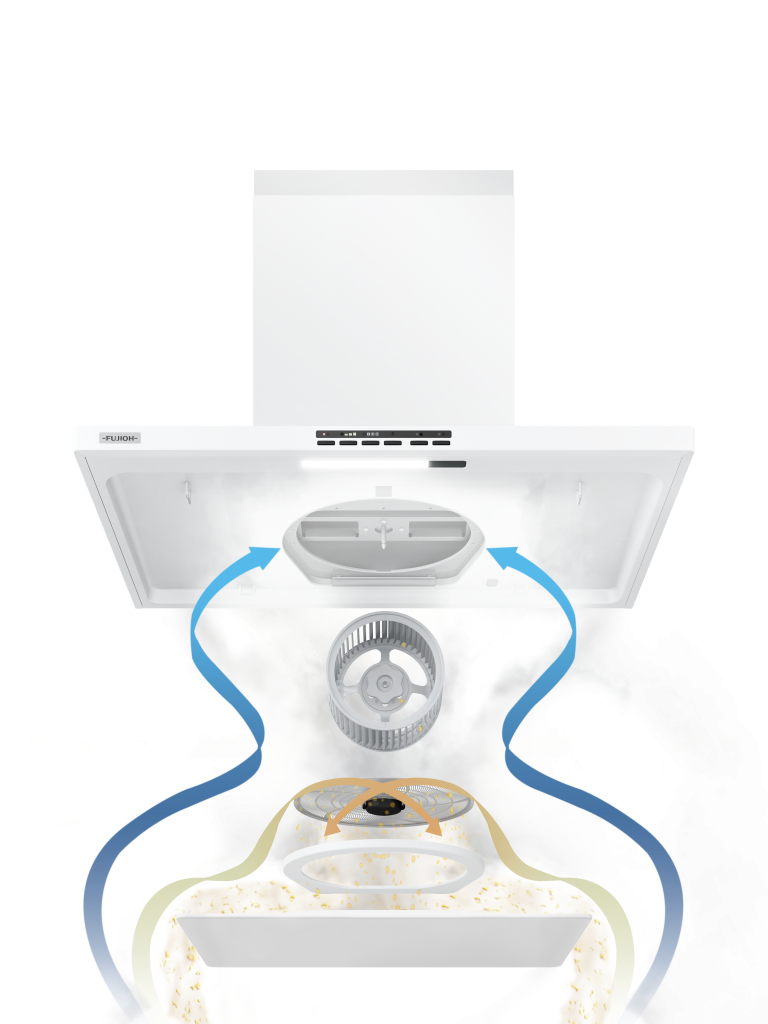

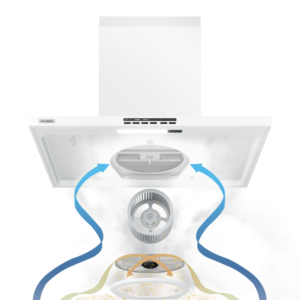

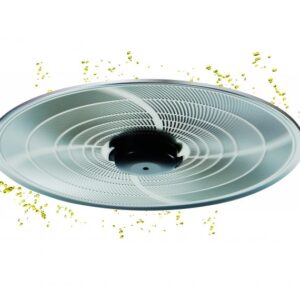

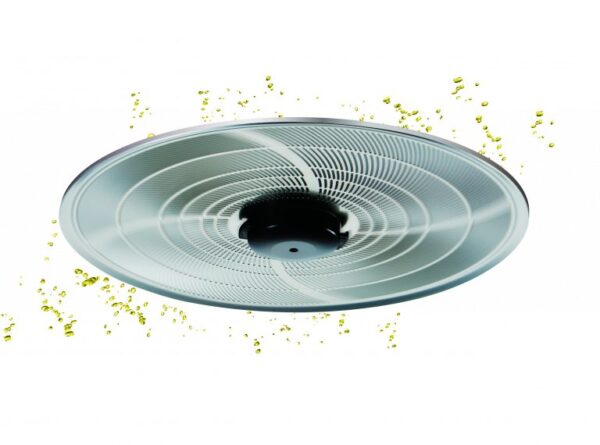

The disk spins and catches most of the oil in fumes. The oil on the disk spun off by centrifugal force and collects in the oil tray.

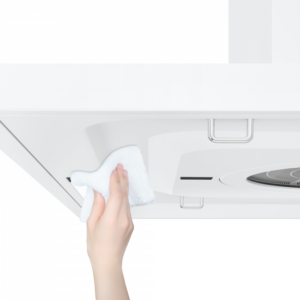

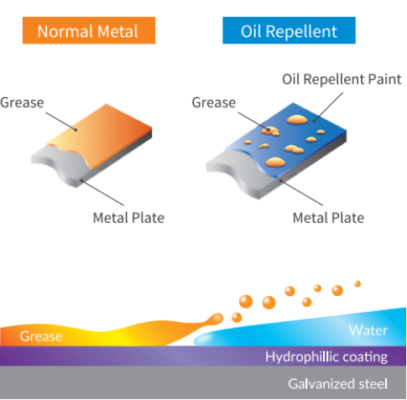

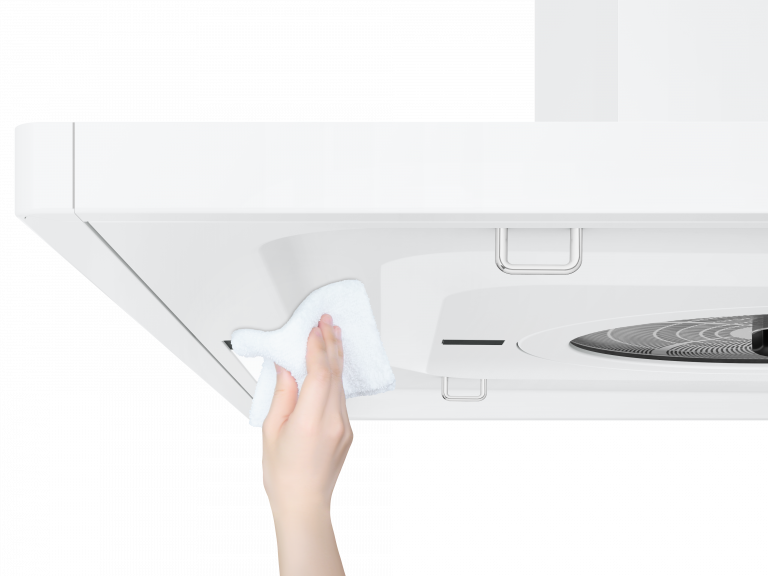

The material repels oil and lifts it from the surface so it’s easy to wipe up. Cleaning takes much lesser time and effort compared to conventional materials.

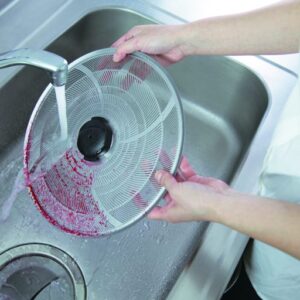

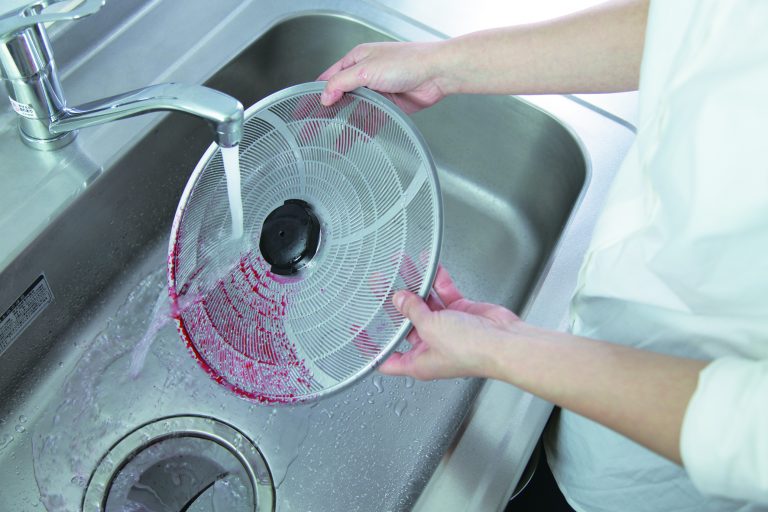

Oil gets lifted from the surface by water thanks to the hydrophilic coat. That’s what makes the disk so easy to clean.

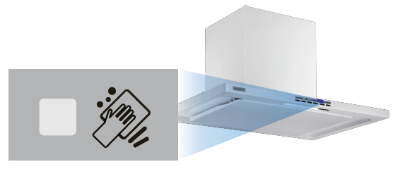

Reminds you when it’s time to clean, so you’ll never forget.
Cleaning the lamp lights up according to the total running time of the cooker hood.
*Items to clean: Parts that can be removed and cleaned (oil tray & disk)
*Time when running for 24 hour mode does not count
*Wipe off the rectifier panel and oil panel in normal daily care

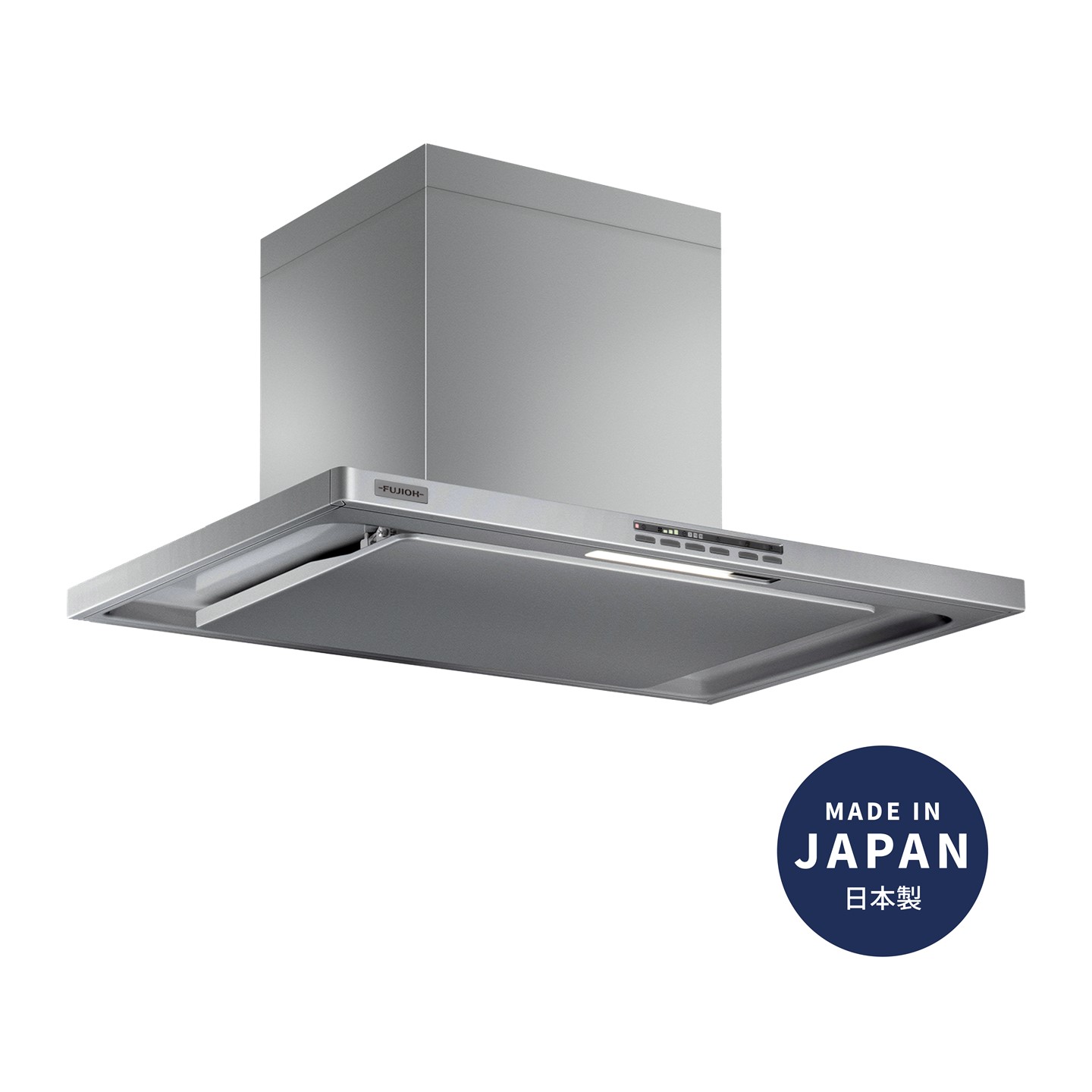

Models |
FR-CL1890R |
FR-CL1890V |
|---|---|---|
Type |
Recycling |
Ventilatin'g |
Material |
(Body) Galvanized Steel |
(Body) Galvanized Steel |
Dimensions [mm] |
W900 x D600 x H750~800 |
W900 x D600 x H550~960 |
Weight [kg] |
31 |
28 |
Power Consumption [W] (220/230/240V) |
94/94/94 |
62/62/62 |
Voltage [V/Hz] |
220-240/50 |
220-240/50 |
Duct Diameter [mm] |
- |
150 |
Sound Level [dB] (220/230/240V) |
54/54/54 |
46/46/46 |
Oil Capturing Ratio [%] |
94 |
91 |
Switch |
Electronic Soft Touch |
Electronic Soft Touch |
Speed |
3 Speed & Boost mode & 24 hour mode |
3 Speed & Boost mode & 24 hour mode |
Hood Body |
Oil Repellent Paint |
Oil Repellent Paint |
Fan |
Steel fan |
Steel fan |
Rectifier Panel |
Oil Repellent Paint |
Oil Repellent Paint |
Filter |
Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating |
Aqua Slit Spinning Disk Stainless Steel with Hydrophilic Coating |
Oil Tray |
Oil Repellent Paint |
Oil Repellent Paint |
Motor |
BLDC Motor |
BLDC Motor |
Lighting |
LED 3.5W x 1 |
LED 3.5W x 1 |
Timer |
3/15/30 min & Cleaning Lamp Function |
3/15/30 min & Cleaning Lamp Function |
