The customized rectifier panel makes the inlet opening narrower, improving the efficiency of fume suction. Moreover, with the combination of slot filter able to contributes in high oil capturing up to 88%.

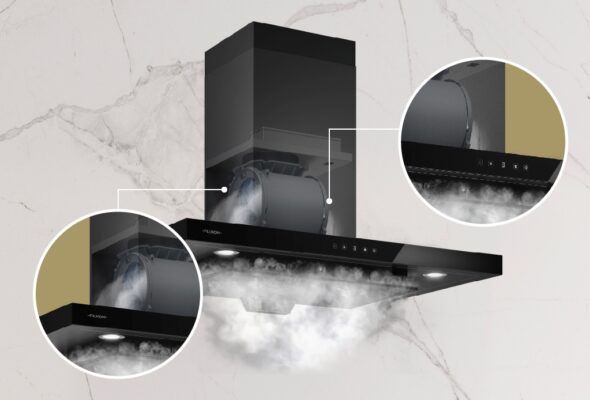

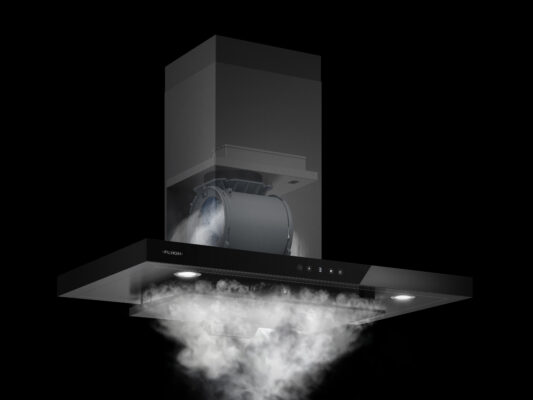

The compact metal fan with double side suction for efficient smoke suction.

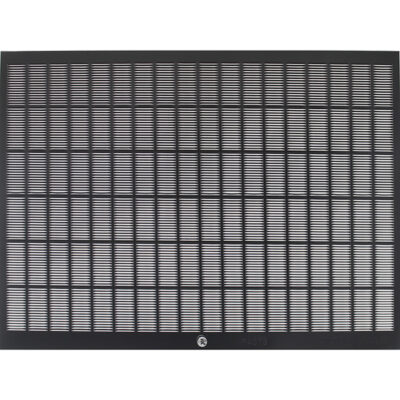

Slot filter (Made in Japan) coated with oil repellant coating which repels and do not allow oil to stick on the metal surface, making the filter surface easy to clean.
9 Mins Timer
Models |
FR-HT2190V |
---|---|
Type |
Ventilating |
Dimensions [mm] |
W895 x D505 x H590~1030 |
Weight [kg] |
18.5 |
Power Consumption [W] |
244/260/275 |
Voltage [V/Hz] |
220,230,240/50 |
Duct Diameter [mm] |
150 |
Sound Level [dB] |
58/59/59 |
Oil Capturing Ratio [%] |
88 |
Switch |
Touch Switch |
Speed |
3 Speeds |
Hood Body |
Black Coated Paint |
Fan |
Metal Fan |
Rectifier Panel |
Paint |
Filter |
Slot Filter |
Motor |
AC Motor |
Lighting |
LED 1.5W x 2 |
Timer |
9 mins |
